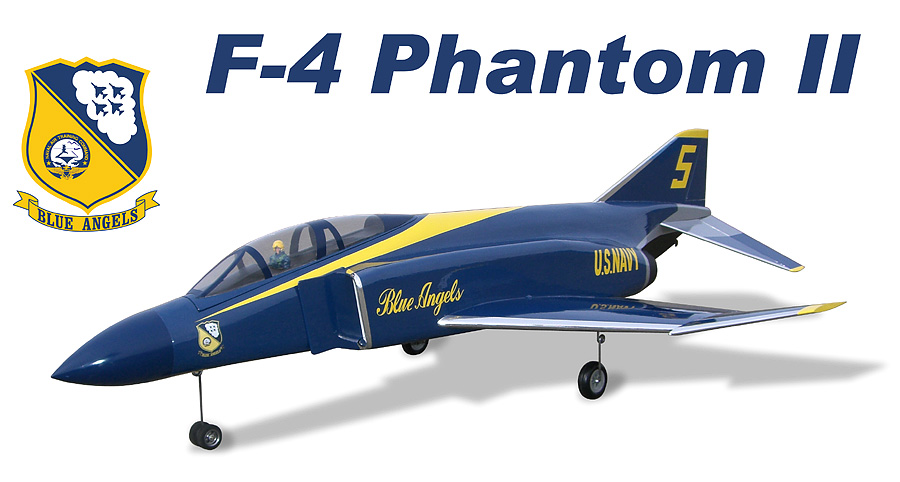

US Navy's Naval Flight Demonstration Squadron (Blue Angels)
Model Built by Dan Savage

This sport-scale, radio control model airplane kit of the F-4 Phantom II is designed to use most 900-1500w, 90mm tractor fans. It will accept most mini retractable landing gear or you can use a bungee launch system instead.

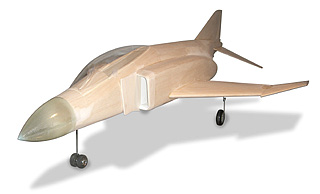

The inlet ducts and fuselage have been simplified to speed construction but sacrifice nothing for scale appearance or performance. The full-flow inlet ducting is area-ruled for maximum efficiency.

All fuselage and wing sheeting is of the finest balsa available and is included with the deluxe kit along with all balsa strip stock.

The F-4 kit is offered in three different versions. We also offer the laser-cut wood sub-kit and molded parts separately:

Short kit. Includes laser-cut wood, plans, molded nose cone, engine nozzle, clear canopy and .010" tailpipe plastic sheet. You supply the sheet and strip balsa wood, magnets and bristol paper and print your own copy of the construction guide.

Standard kit. Includes everything from the Short kit, plus magnets and bristol paper. You supply the sheet and strip balsa wood and print your own copy of the construction guide.

Deluxe kit. Includes everything from the Short and Standard kits, plus all contest balsa sheet and strip stock needed to complete the kit. You print your own copy of the construction guide.

Laser-Cut Parts Sub-Kit. Complete laser-cut wood sub-kit. Includes all the laser-cut wood needed to build the model including airframe, hatches, mounts and all construction and assembly jigs. You supply the sheet and strip balsa wood, magnets, bristol paper, tailpipe material and print your own copy of the construction guide.

Molded Parts Set. The molded parts set includes the molded fiberglass nose cone, engine nozzles, clear canopy and .010" tailpipe plastic sheet.

NOTE: Readers have reported that when you click on the construction guide link, some browsers act like they're frozen while the PDF downloads. We suggest that you right-click on the link, then select 'Save-As' from the pop-up menu.

F-4 Phantom II Laser-Cut Parts Sub-Kit:
Contact Bob Holman (bhplans@aol.com)

F-4 Phantom II Molded Parts Set:
Contact Rodger Hecht (rip2girlz@sbcglobal.net)

F-4 Phantom II Plans:
Contact Air Age Store.com (F-4 Phantom II)




Click on the thumbnail to see the kit contents list.

Photo Gallery

F-4 Plans (329K PDF)
F-4 Construction Guide (31.5Mb PDF)

NOTE: Readers have reported that when you click on the construction guide link, some browsers act like they're frozen while the PDF downloads. We suggest that you right-click on the link, then select 'Save-As' from the pop-up menu.

A Typical Flight - Video (67.2Mb WMV)


Kit Specifications
Wingspan: 33-5/8 inches
Length: 50-1/2 inches
RTF Weight: 56-92 oz.
Wing Area: 383 sq. in.
Wing Loading: 20-34 oz./sq. ft
Power & Radio System Requirements
(Not included)
Fan Unit: 90mm tractor
Motor: Neu 1412/1Y or 1415/1Y Brushless
Speed Controller: Castle Creations Phoenix-80
Motor Batteries: 5S1P-6S1P 4100mAH - 6000mAH
Radio Channels: 4-6 (Aileron, Elevator, Throttle, Rudder,Nose Wheel Steering, Retracts, Flaperons)
Receiver: Hitec 555 or 2.4GHz
Servos: 4-5 - Hitec HS82MG
Receiver Battery: 1 - 4.8-6V, 800mAh NMHD

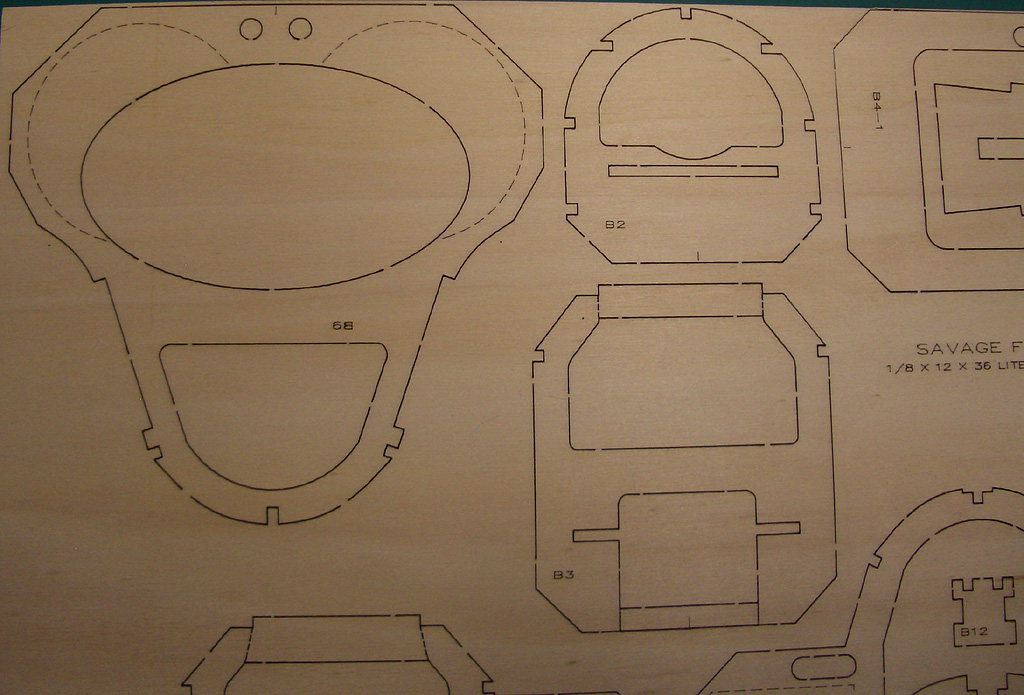

There are over 175 laser-cut pieces that comprise the airframe, cockpit hatch, fan hatch, elevator hatch, retract mounts, servo mounts, fan mount as well as all construction and assembly jigs. All of the laser-cut parts needed to build the model are here. All laser cut balsa parts are of the finest grade of balsa available.

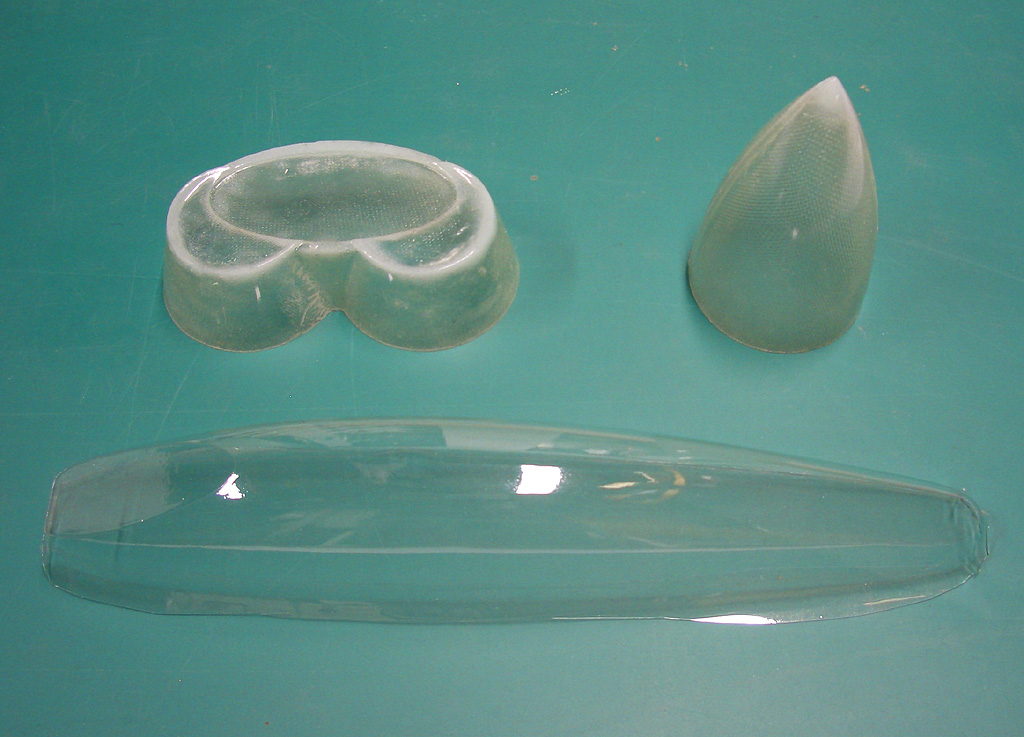

You'll also get molded fiberglass nose cone, one-piece jet engine nozzles and a vacuum formed clear canopy. The tailpipes are rolled from .010" polyester sheet which is included.
