Savage
Light Industries

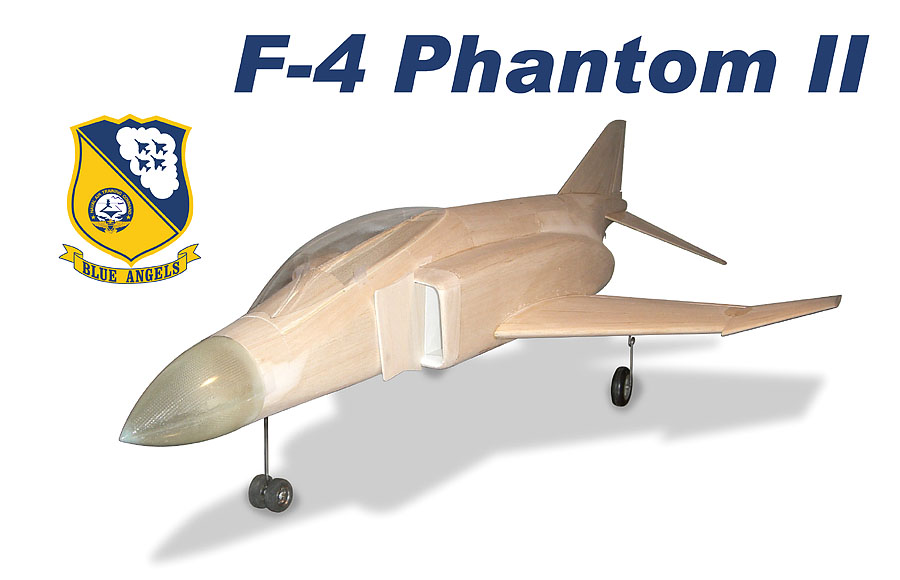

F-4 Phantom II
|
| |
| Short Kit Contents |
Printed
Material
|
| 2 |
- |
36"
x 60" Construction Plan Sheet |
| |
|
|
Molded
& Sheet Plastic Parts
|
| 1 |
- |
Nose
Cone (Fiberglass - Natural) |
| 1 |
- |
Engine Nozzles (Fiberglass - Natural) |
| 1 |
- |
Canopy
(PETG - Clear) |
| 1 |
- |
.010"
x 10" x 10" (PETG - Clear, Tailpipes) |
| |
|
|
Laser
Cut Wood
|
| 1 |
- |
1/4"
x 3" x 12" (Lite Ply - Battery Tray) |
| 1 |
- |
1/8"
x 12" x 36" (Lite Ply - Bulkheads) |
| 1 |
- |
1/8"
x 6" x 36" (Lite Ply - Bulkheads & Keels) |
| 2 |
- |
1/8"
x 4" x 36" (Lite Ply - Keels & Jigs) |
| 2 |
- |
1/8"
x 4" x 24" (Birch Ply - Mounts & Spars) |
| 1 |
- |
1/8"
x 4" x 12" (Birch Ply - Mounts) |
| 1 |
- |
1/16"
x 4" x 12" (Birch Ply - Tip Ribs & Control Horns) |
| |
|
|
| 2 |
- |
1/4"
x 4" x 24" (Balsa - Elevators & Inlets) |
| 1 |
- |
3/16"
x 3" x 36" (Balsa - Tail Feathers) |
| 2 |
- |
1/8"
x 4" x 24" (Balsa - Inlets) |
| 1 |
- |
1/8"
x 4" x 36" (Balsa - Cockpit Hatch & Elevator Hatch) |
| 2 |
- |
1/16"
x 4" x 24" (Balsa - Wing Ribs) |
| |
|
|
Standard Kit Contents
Standard kit includes everything in the Short plus: |
| |
|
|
Metal
Parts
|
| 24 |
- |
1/4"
x 1/6" Round Magnets (Hatch Latch) |
| |
|
|
Paper
Parts
|
| 4 |
- |
11" x 14" 100# Bristol Paper. (White) |
| |
|
|
| |
Deluxe Kit Contents
Deluxe kit includes everything in the Short kit and the Standard kit plus: |
| |
|
|
Sheet
& Strip Stock
|
| 12 |
- |
1/8"
x 4" x 36" (Balsa - Fuselage Sheeting) |
| 6 |
- |
1/16"
x 4" x 36" (Balsa - Wing Sheeting) |
| 3 |
- |
1/2"
x 3/4" x 36" (Balsa - Wing Leading Edge) |
| 2 |
- |
1/4"
x 3/4" x 36" (Balsa - Aileron Spars) |
| 1 |
- |
1/8"
x 3/8" x 36" (Balsa - Trailing Edge) |
| 6 |
- |
1/2"
x 36" Triangle (Balsa - Corner Blocks) |
| 1 |
- |
1"
x 1" x 18 " Square (Balsa - Front and Rear Lower Corner Blocks) |
| 6 |
- |
1/8"
x 1/8" x 36" Square (Balsa - Spars & Stringers) |
| |
|
|
| |
|
|
